Description

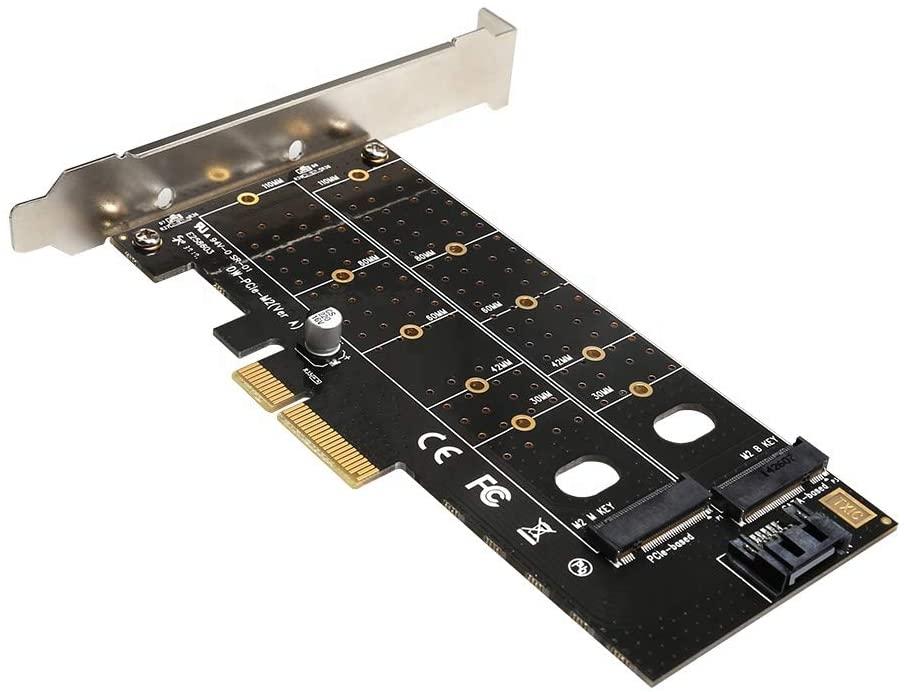

xPCIE TO M 2(M KEY+B KEY) - TXB044
2-Port M.2 SSD (NGFF) Adapter Card - 1 x PCIe
(NVMe) M.2, 1 x SATA III M.2 - PCIe 3.0
This 2-Port M.2 SSD Adapter card is one of the only Cards that Supports both PCIe and SATA-based M.2 SSDs
Increase The Storage Of Your Desktop PC
This Card Provides a Platform for Adding up to Two M.2 SSDs To Virtually any Computer That has A PCIe Slot
It Supports common M.2 SATA SSDs, as well as newer High-Performance M.2 PCIe Drives
Now you have a simple and effective way to Expand the Storage of your Computer, regardless of the M.2 Drive Types you are using
Optimize Your Computers Performance
When you Couple this Card with a PCI Express based M.2 Drive
You can give your Computers Performance a noticeable Speed Boost
With Support for PCI Express 3.0 (up to approximately 40Gbps)
You can Install the latest High-Performance M.2 PCIe SSDs inside your Computer
With Faster Performance, you can get more work done in less time
Supports A Wide Range Of Drives
You can rest assured that your M.2 SSDs are Compatible with the Adapter Card
It Supports the most common Drive sizes, including 2280, 2260, 2242 and 2230
Features
Expand the Storage and improve the Performance of your Computer with Slots for one M.2 SATA SSDs and one M.2 PCIe SSD
Supports PCI Express 3.0 (x4), ideal for a High-Performance M.2 PCIe SSD (NVMe)
SATA Slot Feature a pass-through Design, so your Drive can Connect to the SATA Port on your Host PC
Full Bandwidth is available for each M.2 Drive simultaneously (up to approximately 40Gbps for M.2 PCIe Drive, and up to 6Gbps for M.2 SATA III Drive)
Wide Installation Compatibility, with Support for a range of M.2 drives (2280, 2260, 2242, 2230)
Adjustable stand-offs and Multiple Mounting Holes Support 80mm, 60mm, 42mm, and 30mm SSDs
Equipped With A Full-Profile Bracket, Includes A Low-Profile (half-height bracket) For Installation In Small Form-Factor Computers
Installs into x4, x8, or x16 PCIe Slots
Data Sheet Hardware
Bus Type: PCI Express
Card Type: Standard & Low Profile
Industry Standards
Serial ATA 3.0 Specification SATA I/II/III (1.5/3/6Gbps)
PCI Express Base Specification Rev. 3.0
Interface
M.2 SATA
SATA M.2 PCIe
Port Style: Integrated on Card
Ports: 2
Performance
ATAPI Support: Yes
Bootable: Yes
Connector(s)
Connector Type(s): 1 - PCI Express x4 Male
Internal Ports
1 M.2 SATA (NGFF, B-Key) Receptacle
1 M.2 (NGFF, M-Key, PCIe x4) Receptacle
1 SATA (7 pin, Data) Plug
Software
OS: Compatibility OS Independent, no additional Drivers or Software required
Special Notes / Requirements
Note
The Maximum throughput of this Card is limited by the Bus Interface
If used with PCI Express Gen 1.0 enabled Computers, the Max throughput is 2.5 Gbps
If used with PCI Express Gen 2.0 enabled Computers, the Max throughput is 5 Gbps
System and Cable Requirements
PCI Express enabled Computer with an available PCI Express x4, x8, or x16 Slot
One SATA Host Port on the Host Controller
An OS that natively Supports PCIe SSDs (NVMe)
Windows 7 and later
Mac OS X 10.10.3 and later
Indicators
LED Indicators: 2 M.2 Drive Status/Activity (Green)
Environmental
Humidity: 20-80% RH
Operating Temperature : 5C to 50C (41F to 122F)
Storage Temperature: -25C to 70C (-13F to 158F)
Physical Characteristics
Product Height: 120 mm
Product Length: 140 mm
Product Weight:51.2 g
Product Width: 20 mm
What's In The Box
Included in Package
1 2-Port M.2 NGFF SSD Adapter Card
2 M.2 Mounting Standoffs
2 M.2 Mounting Screws
